SACH1230:
Operating pressure: 10 bar
Nominal diameter: 8
Port threads: M 22x1.5
Charging pressure: 5.0 bar
Range of adjustment: 0.5 ... 5.2 bar
SACH1240:
Operating pressure: 10 bar
Nominal diameter: 8
Port threads: M 22x1.5
Charging pressure: 5.5 bar
Range of adjustment: 5.3 ... 7.0 bar
SACH2270:
Operating pressure: 10 bar
Nominal diameter: 8
Port threads: M 22x1.5
Charging pressure: 5.5 bar
Range of adjustment: 5.3 ... 7.0 bar
SACH2280:
Operating pressure: 10 bar
Nominal diameter: 8
Port threads: M 22x1.5
Charging pressure: 6.4 bar
Range of adjustment: 5.3 ... 7.0 bar
Back flow: limited
SACH1430:
1. Operating pressure: 13 bar
2. Nominal diameter: 8
3. Port threads: M 22x1.5
4. Charging pressure: 9.0 bar
5. Back flow: without
SUNDOZ NO:SACH1230
ORG NO: 434 100 123 0
SUNDOZ NO:SACH1240
ORG NO: 434 100 124 0
SUNDOZ NO:SACH2270
ORG NO: 434 100 227 0
SUNDOZ NO:SACH2280
ORG NO: 434 100 228 0
REF.SCANIA 1308510
SUNDOZ NO:SACH1430
ORG NO:434 100 143 0
REF.SCANIA 1384864 / 1105673
SUNDOZ NO:SACH2220
ORG NO: 434 100 222 0
REF.VOLVO 1598426

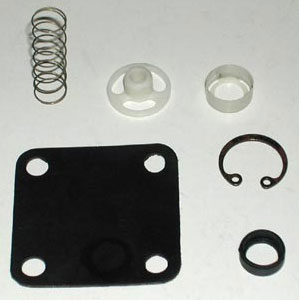

Repair Kit
SUNDOZ NO:SACHR0022
ORG NO:434 100 002 2
1. 001 586 20 42 DaimlerChrysler
2. 0693394 DAF
3. 2530 12 194 9617 NATO
4. 2530 21 194 9617 NATO
5. 392234 Scania
6. 4248 3080 Iveco
7. 5000560242 Renault-VI
8. 5000560424 Renault-VI
9. 5029 87908 Liebherr
10. 6210724 Volvo
11. 693394 DAF
12. 81 52100 6052 MAN
13. 81 52110 6052 MAN
14. 969 081 00 Terex-Demag
15. 9970 1403686 FAUN
16. CF3521586 Fruehauf
SUNDOZ NO:SACHR0092
ORG NO:434 100 009 2
1. 000 586 36 42 DaimlerChrysler
2. 0296 8768 Iveco
3. 0735430 DAF
4. 2530 12 145 7088 NATO
5. 2530 21 145 7088 NATO
6. 272509 Volvo
7. 515 086 00 Terex-Demag
8. 735430 Leyland DAF
9. 7701200045 Renault-VI
10. 90 81019 6875 MAN
11. 99 00036 0862 MAN
