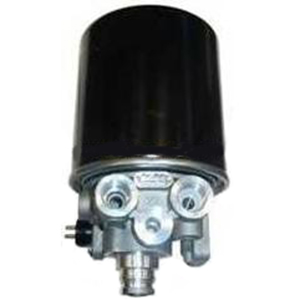

SAD4200 SAD4202 SAD4203

Home > Products > Air Brake System > Air Dryer Assy & Rep. Kit > SAD4200 SAD4202 SAD4203
Model:
Product Description:

SUNDOZ NO:SAD4200
ORG NO:432 420 000 0
1. 000 431 36 15 DaimlerChrysler
2. 000 431 38 15 DaimlerChrysler
3. 000 431 67 15 DaimlerChrysler
4. 000 431 68 15 DaimlerChrysler
5. 11017448 Neoplan
6. 1102.734.01 Neoplan
7. 110273401 Neoplan
8. 1505972 DAF
9. 88 52102 6007 MAN
10. 9970 7004741 FAUN

SUNDOZ NO:SAD4202
ORG NO:432 420 002 0
1. 000 431 36 15 DaimlerChrysler
2. 000 431 36 35 DaimlerChrysler
3. 000 431 37 15 DaimlerChrysler
4. 000 431 65 15 DaimlerChrysler
5. 11018619 Neoplan
6. 1517973 DAF
7. 1629927 Volvo
8. 2530 12 325 3715 NATO
9. 2530 23 325 3715 NATO
10. 8460398 O&K

SUNDOZ NO:SAD4203
ORG NO:432 420 003 0

Product Specification:

SAD4200:
1. Max. operating pressure: 13 bar
2. Unloader: without
3. Voltage: 24 V
4. Heater : 894 260 040 2
5. Heating connection: M 27x1
6. Desiccant cartridge: 432 410 020 2
7. Port 1: M 22x1.5
8. Port 21: M 22x1.5
9. Port 22: M 12x1.5
10. Exhaust: Snap-on contour
11. Port 4: M 12x1.5
12. Mounting holes: M 12x1.5

SAD4202:
1. Max. operating pressure: 13 bar
2. Unloader: without
3. Heater : -
4. Desiccant cartridge: 432 410 020 2
5. Port 1: M 22x1.5
6. Port 21: M 22x1.5
7. Port 22: M 12x1.5
8. Exhaust: Snap-on contour
9. Port 4: M 12x1.5
10. Mounting holes: M 12x1.5

SAD4203:
1. Max. operating pressure: 13 bar
2. Unloader: without
3. Voltage: 12 V
4. Heater : 894 260 044 2
5. Heating connection: M 27x1
6. Desiccant cartridge: 432 410 020 2
7. Port 1: M 22x1.5
8. Port 21: M 22x1.5
9. Port 22: M 12x1.5
10. Exhaust: Snap-on contour
11. Port 4: M 12x1.5
12. Mounting holes: M 12x1.5
