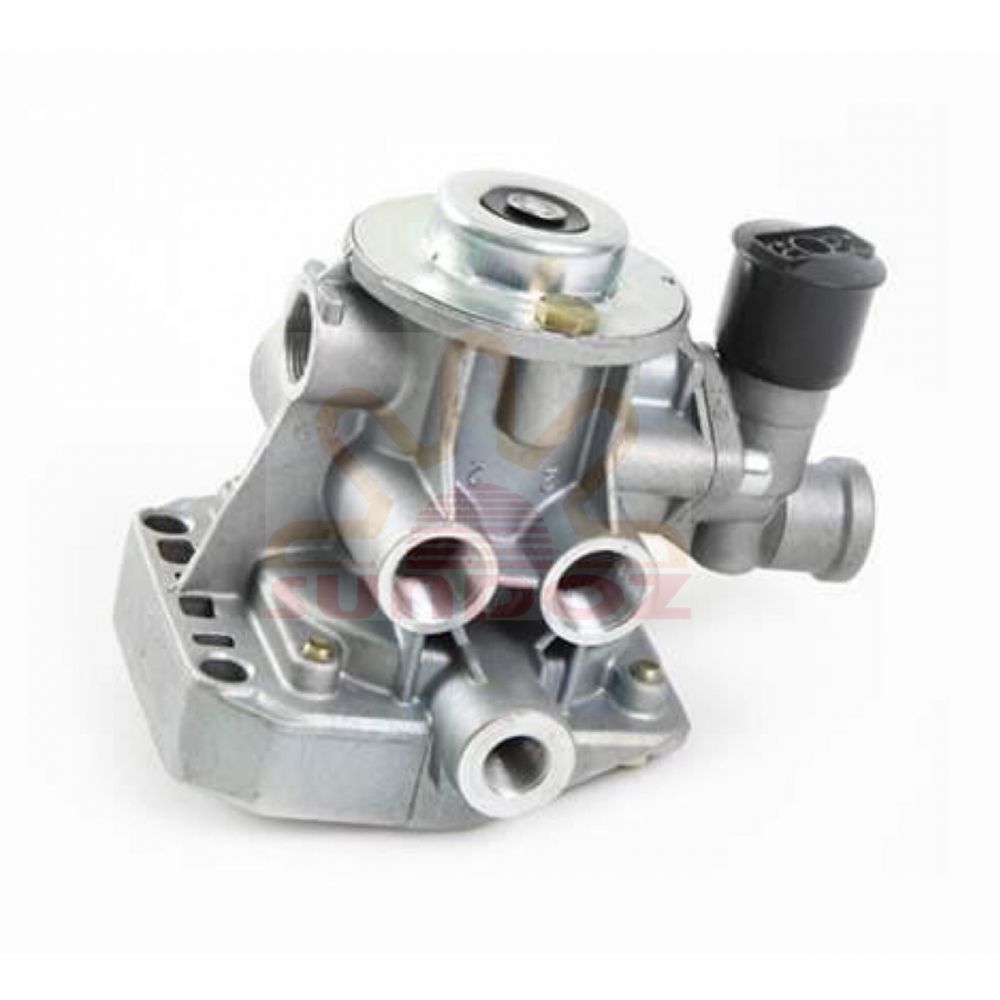

RE7000 RE7010

Home > Products > Air Brake System > Emergency Relay Valve > RE7000 RE7010
Model:
Inquiry
Product Description:

SUNDOZ NO:RE7000
ORG NO:971 002 700 0

SUNDOZ NO:RE7010
ORG NO:971 002 701 0

Product Feature:
1. Comments: Combination of 971 002 300 0 and release valve 963 001 013 0
2. Max. operating pressure: 8.5 bar
3. Predominance : adjustable: 0 to 1
4. Port 1: M 22x1.5
5. Port 2: M 22x1.5
6. Port 1-2: M 22x1.5
7. Port 4: M 16x1.5
8. Port 41: M 22x1.5
9. Port 42: M 22x1.5

RE7010:
1. Comments: Combination of 971 002 300 0 and release valve 963 001 012 0
2. Max. operating pressure: 8.5 bar
3. Predominance : adjustable: 0 to 1
4. Port 1: M 16x1.5
5. Port 2: M 22x1.5
6. Port 1-2: M 22x1.5
7. Port 4: M 16x1.5
8. Port 41: M 22x1.5
