SAR1520 SAR1510

Model:
Product Description:

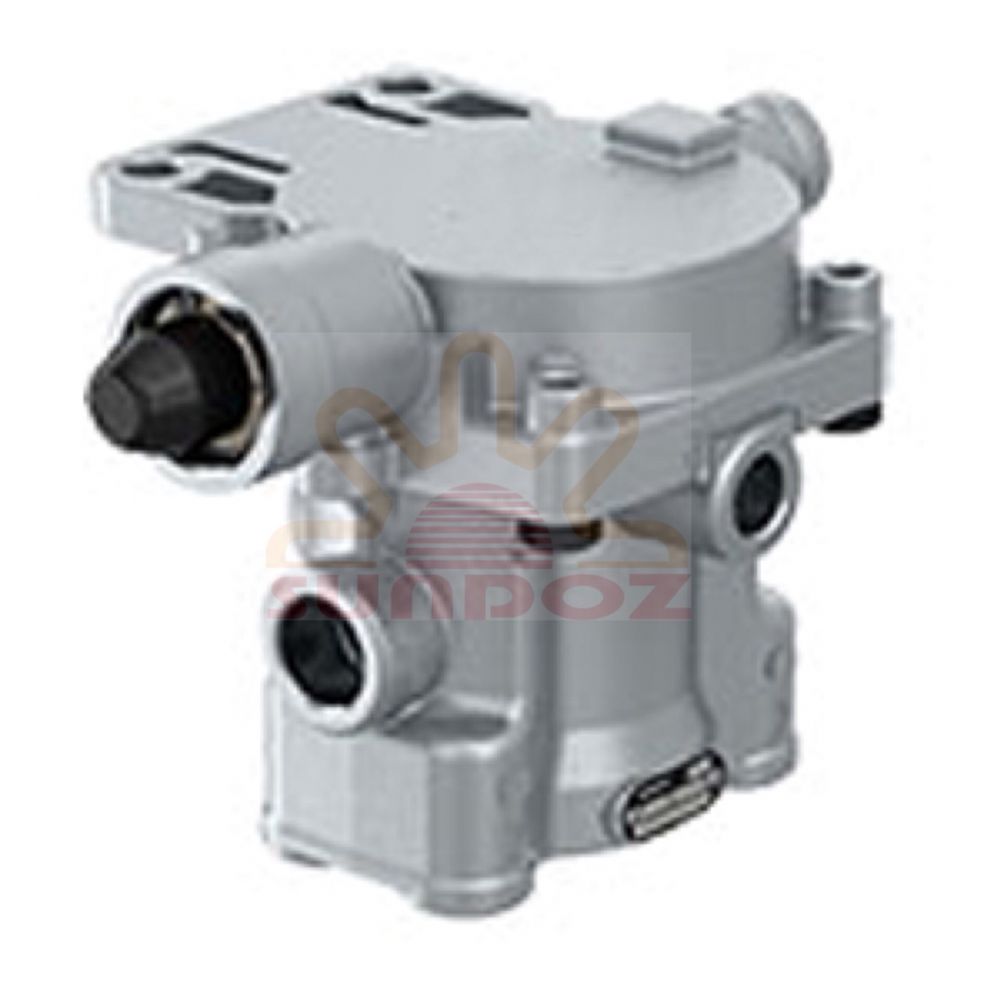

SUNDOZ NO:SAR1520
ORG NO:971 002 152 0
1. 050024 Schmitz
2. 07110.000 Neoplan
3. 1325335 DAF
4. 4 425 0126 00 Sauer
5. 76275 Kögel
6. 945017 Krone
7. AJA0313-1/AJC0070-1 Fruehauf
8. AJC0070001 Fruehauf
9. CF351193 Fruehauf

SUNDOZ NO:SAR1510
ORG NO:971 002 151 0
1. 1519296 DAF
2. 2530 12 196 1082 NATO
3. 2530 21 196 1082 NATO
4. 5021170442 Renault-VI
5. AFA4271005 Fruehauf

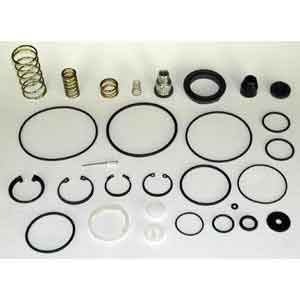

REPAIR KIT
SUNDOZ NO:SAR1520.K
ORG NO:971 002 004 2
1. 1506474 DAF
2. CF3519828 Fruehauf

Product Specification:

SAR1520:
1. Max. operating pressure: 10 bar
2. Predominance : adjustable: 0 to 1
3. Port 1: M 16x1.5
4. Port 2: 4x M 16x1.5; 1x M 22x1.5
5. Port 1-2: M 22x1.5
6. Port 4: M 16x1.5

SAR1510:
1. Max. operating pressure: 10 bar
2. Port 1: M 16x1.5
3. Port 2: M 16x1.5
4. Port 1-2: M 22x1.5
5. Port 4: M 16x1.5
