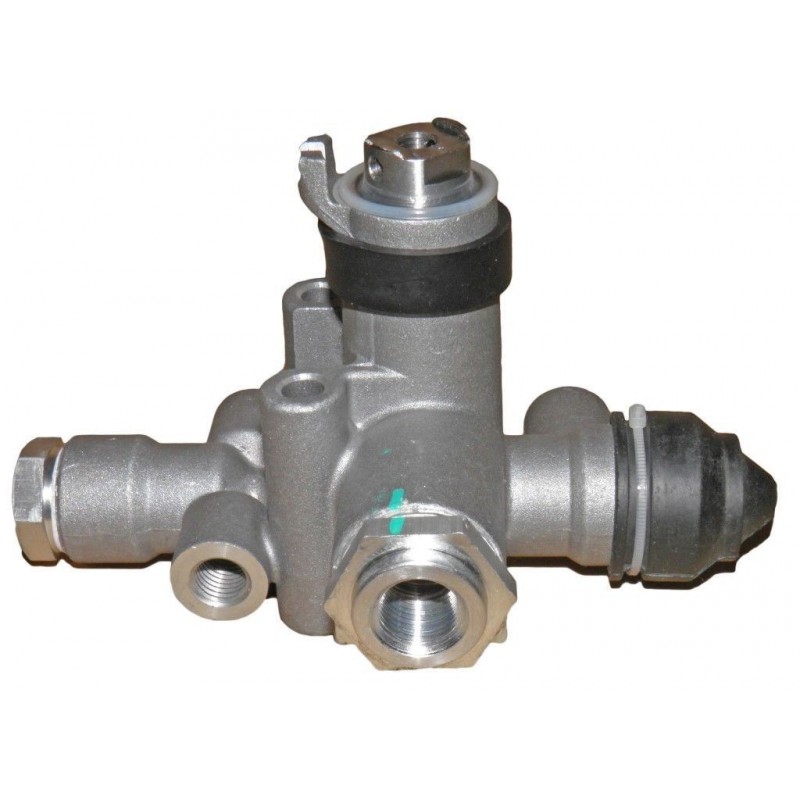

SASV1280 / SASV1281 / SASV1329 / SASV1330 / SASV1369 / SV1370 / SV1377 / SV1378

Home > Products > Air Brake System > Levelling Valve > SASV1280 / SASV1281 / SASV1329 / SASV1330 / SASV1369 / SASV1370 / SASV1377 / SASV1378
Model:
Product Description:

SUNDOZ NO:SASV1280
KNORR NO:SV1280
Renault 5000787083

SUNDOZ NO:SASV1281
KNORR NO:SV1281

SUNDOZ NO:SASV1329
KNORR NO:SV1329

SUNDOZ NO:SASV1330
KNORR NO:SV1330

SUNDOZ NO:SASV1369
KNORR NO:SV1369

SUNDOZ NO:SASV1370
KNORR NO:SV1370

SUNDOZ NO:SASV1377
KNORR NO:SV1377

SUNDOZ NO:SASV1378



Product Feature:

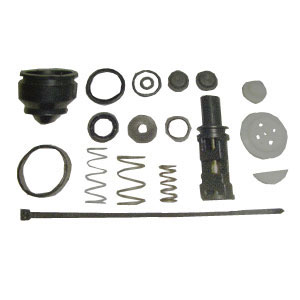

SASV1280
Air Inlet port(s) size 11: M12x1,5, 12: M16x1,5
Air Delivery port(s) size 21: M12x1,5, 23: M16x1,5
Without Datum Adjustment .
Height limitation [deg.] 42¢X
Flow characteristic number G2
Lever style Flat (F) or Round (R) F
Weight [Kg] 0,582

SASV1281
Air Inlet port(s) size 11: M12x1,5, 12: M16x1,5
Air Delivery port(s) size 21: M12x1,5, 23: M16x1,5
Air Signal port(s) size M12x1,5
Datum adjustment [deg.] 10¢X
Height limitation [deg.] 42¢X
Flow characteristic number G2
Lever style Flat (F) or Round (R) F
Weight [Kg] 0,581

SASV1329
Air Inlet port(s) size 11: M12x1,5, 12: M16x1,5
Air Delivery port(s) size 21: M12x1,5, 23: M16x1,5
Without Datum Adjustment .
Height limitation [deg.] 26¢X
Flow characteristic number G2
Lever style Flat (F) or Round (R) F
Mounting - Left (L)/Right (R)/Horizontal (H) R
Weight [Kg] 0,606

SASV1330
Air Inlet port(s) size 11: M12x1,5, 12: M16x1,5
Air Delivery port(s) size 21: M12x1,5, 23: M16x1,5
Height limitation [deg.] 26¢X
Flow characteristic number G2
Lever style Flat (F) or Round (R) F
Weight [Kg] 0,607

SASV1369
Air Inlet port(s) size 11: M12x1,5, 12: M16x1,5
Air Delivery port(s) size 21: M12x1,5, 23: M16x1,5
Height limitation [deg.] 30¢X
Flow characteristic number N2
Lever style Flat (F) or Round (R) F
Weight [Kg] 0,761

SASV1370
Air Inlet port(s) size 11: M12x1,5, 12: M16x1,5
Air Delivery port(s) size 21: M12x1,5, 23: M16x1,5
Height limitation [deg.] 30¢X
Flow characteristic number N2
Lever style Flat (F) or Round (R) F
Weight [Kg] 0,766

SASV1377
Weight [Kg] 0,780

SASV1378
Air Inlet port(s) size 11: M12x1,5, 12: M16x1,5
Air Delivery port(s) size 21: M12x1,5, 23: M16x1,5
Height limitation [deg.] 30¢X
Flow characteristic number N2
Lever style Flat (F) or Round (R) F
Weight [Kg] 0,680
